| Weight | 0.10 kg |
- Deep learning based human and vehicle targets classification of Motion Detection 2.0
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 18-ch IP camera input (up to 5 MP)
- Encoding ability up to 1080p lite @ 15 fps
- Max. 1200 m for 720p HDTVI signal
Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For standard definition stream access: WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
For 1080p and 720p stream access CIF/QVGA@15 fps
For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 4 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
Video And Audio
- IP Video Input
2-ch (up to 18-ch)
Up to 5 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras

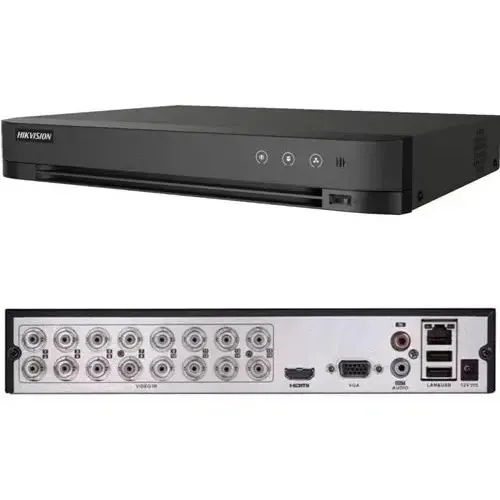

- Analog Video Input
16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input1080p25, 1080p30, 720p25, 720p30
- AHD Input1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output ModeHDMI/VGA simultaneous output
- Audio Input1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback16-ch
Network
- Total Bandwidth96 Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connection128
- Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary Interface
- SATA1, SATA interface
- CapacityUp to 10 TB capacity for each disk
- USB Interface2 × USB 2.0
