🔌 Hikvision 8-Way CCTV Power Supply Box – Reliable Power, Maximum Protection

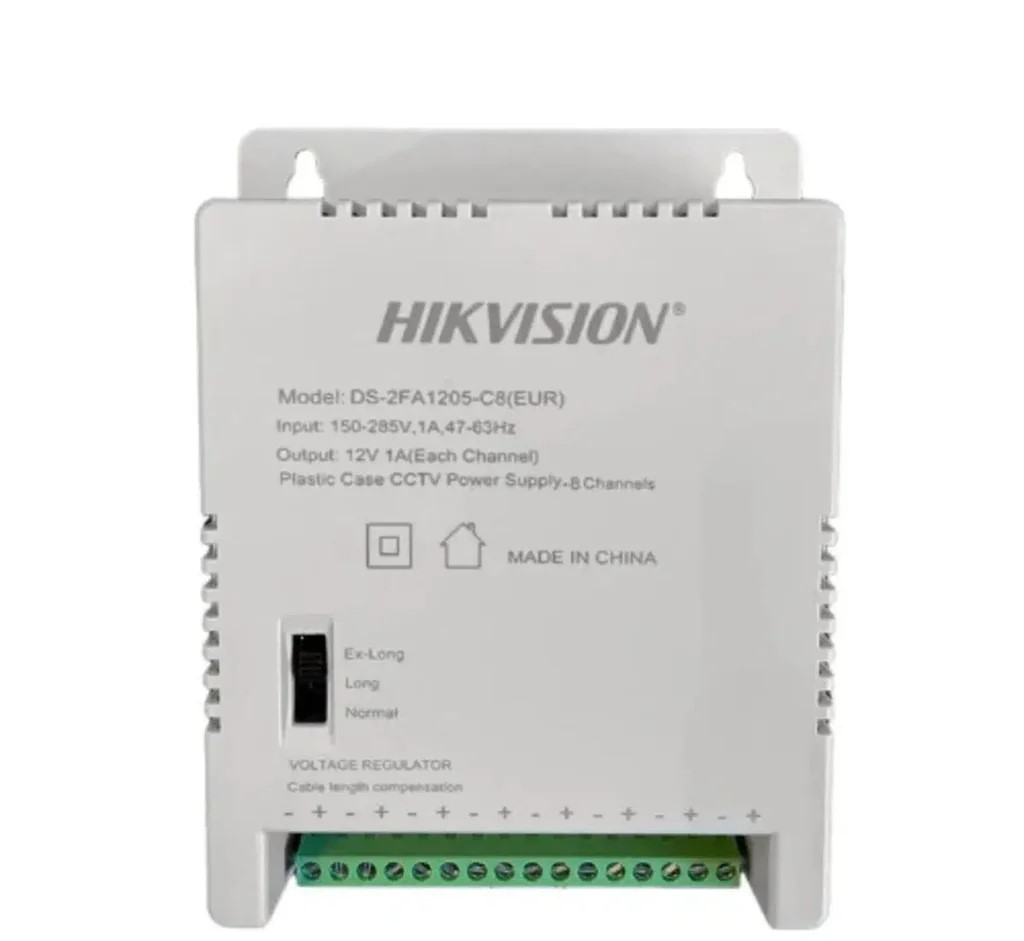

Power your surveillance system with confidence using the Hikvision 8-Way Power Supply Box (Model: DS-2FA1205-C8(EUR)). Designed for efficiency and stability, this compact power supply delivers 12VDC output across 8 individual channels, making it perfect for powering multiple CCTV cameras simultaneously with consistent voltage and clean output.
🔧 Key Features:
✅ 8-Channel Output
Delivers 12V DC / 1A per channel, ideal for powering up to 8 cameras without signal drops or voltage inconsistencies.
✅ High Capacity 10A Performance
Total output capacity of 10 Amps, ensuring stable power supply across all connected channels.
✅ Smart LED Power Indicators
Each channel features a green LED indicator to monitor live power status at a glance.
✅ Wide Voltage Input Range
Supports 150V to 285V AC input, making it suitable for both residential and industrial use.
✅ Ultra Low Ripple & Noise
With a ripple and noise rating of only 150mVp-p, your cameras enjoy clean, uninterrupted power—boosting their longevity and performance.
✅ Durable, Compact Design
-
White finish for a sleek appearance
-
Compact dimensions: 144 mm × 109.5 mm × 33 mm (5.67″ × 4.31″ × 1.30″)
-
Perfect for wall mounting or discrete placement in tight spaces.
✅ Weather-Ready Tolerance
-
Operating temperature: 0°C to 40°C
-
Storage temperature: -40°C to 80°C
-
Humidity resistance up to 95% non-condensing—built to perform under pressure.
⚙️ Specifications Summary:
-
Model: DS-2FA1205-C8(EUR)
-
Input Voltage: 150–285 VAC, 47–63 Hz
-
Output Voltage: 12 VDC
-
Output Per Channel: 1 Amp
-
Total Output Power: 10 Amps
-
Connectors:
-
AC Input: C8 Plug
-
DC Output: Grid terminal/DC plug
-
-
LED Indicators: Green per channel
💼 Ideal For:
-
Home & Office CCTV Installations
-
Retail & Commercial Surveillance Systems
-
Multi-Camera DVR/NVR Setups
-
Outdoor Security Camera Networks
